Roller Linear Guides - TZW-CA (Flange/Normal length)
TZ series roller linear guides use roller components, not steel balls in traditional linear motion parts, designed to achieve super-high rigidity and load capacity. Keeping the 45-degree contact angle design, the TZ series linear guides show us a good performance in reducing elastic deformation. It allows the overall linear guide to achieve this high rigidity and high load capacity in multiple directions.

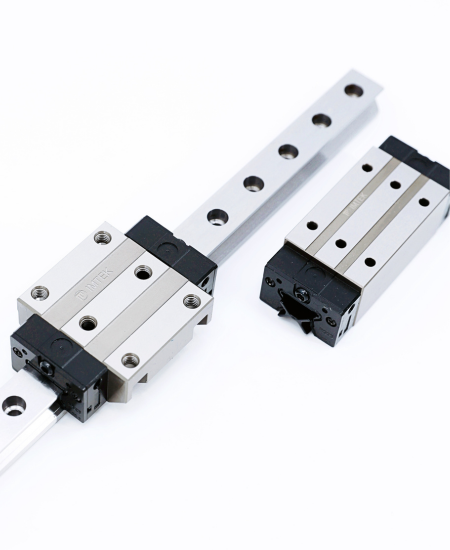

TZW-CA model is a linear guide rail with a flange-type block, which has a normal length of the block.
They have different performances on load capacities and assembly space requirements.
Main features are as below:
- Customizable
- Ultra-high rigidity in all four directions
- Super heavy load capacity
- Extended life
- Durable

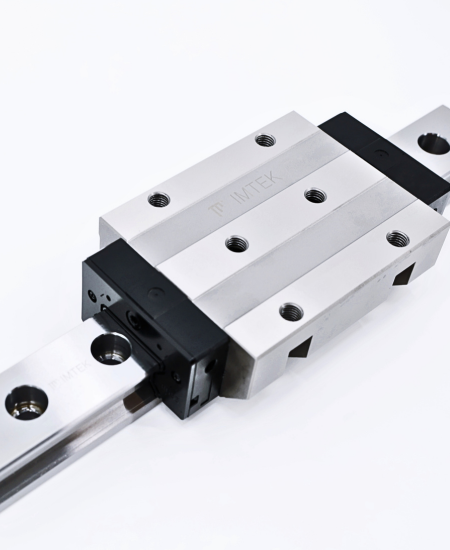

IMTEK Linear Guides TZW-CA

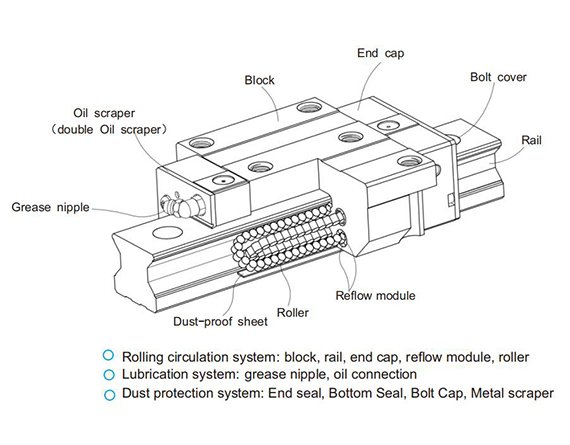

IMTEK Roller linear guides with rolling components can achieve smooth motion, low friction, and convenient maintenance for long-term service. What’s more, optimized lengths and diameters of the rollers are good at reducing elastic deformation and achieving super high rigidity.
TZW-CA model is linear guide rail with square type block, which has normal length. High-speed automated industrial machinery and equipment with high rigidity requirements are more likely to utilize TZ series Roller linear guides.
Technical Data
| Series | TZ Series |
| Size | 25/30/35/45/55 |
| Block Type | flange |
| Load Type | heavy load(C)/super heavy load(H) |
| Block Fixing Method | lock from above(A) |
| Length of Rail | 100~6000mm |
| Numbers of Block | 1/2/3/4/5/6 |
| Accuracy level | C(normal); H(high); P(precision) |
| Certification | ISO 9001/ISO 14001 |
| Block Dimensions | Block Dimensions |
| Installation Width(W) | 34; 44; 48; 60; 70; 86; 100; 126 |
| Combination Height(H) | 28; 34; 40; 45; 55; 70; 80; 90 |
| Length(L) | 68; 86/106; 97.9/114.4; 109.8/131.8; 124/151.5; 153.2/187; 183.7/232; 232/295 |
| Thread(M*l) | M4*8; M5*8; M6*8; M8*10; M8*12; M10*17; M12*18; M16*20 |
| Hole Spacing(B) | 26; 32; 35; 40; 50; 60; 75; 76 |
| Hole Spacing(C) | 26; 36/50; 35/50; 40/60; 50/72; 60/80; 75/95; 70/120 |
| Block Material | 20CrMo |
| Rail Dimensions | Rail Dimensions |
| Width(WR) | 15; 20; 23; 28; 34; 45; 53; 63 |
| Height(HR) | 16.5; 21; 23.6; 28; 30.2; 38; 44; 53 |
| Hole Pitch(p) | 30; 30; 30; 40; 40; 52.5; 60; 75 |
| D×h×d | 7.5*5.7*4.5; 9.5*8.5*6; 11*9*7; 14*12*9; 14*12*9; 20*17*14; 23*20*16; 26*22*18 |
| Static Capacity C0(kN) | 24; 46.7/63; 57.1/73.4; 82.1/105; 105.2/142; 178.8/230.9; 252/348; 411.6/572.7 |
| Dynamic Capacity C(kN) | 11.3; 21.3/26.9; 27.7/33.9; 39.1/48.1; 57.9/73.1; 92.6/116; 130.5/167.8; 213/275.3 |
| Rail Material | S55c Alloy Steel |
IMTEK Roller linear guides TZW-CA Specifications

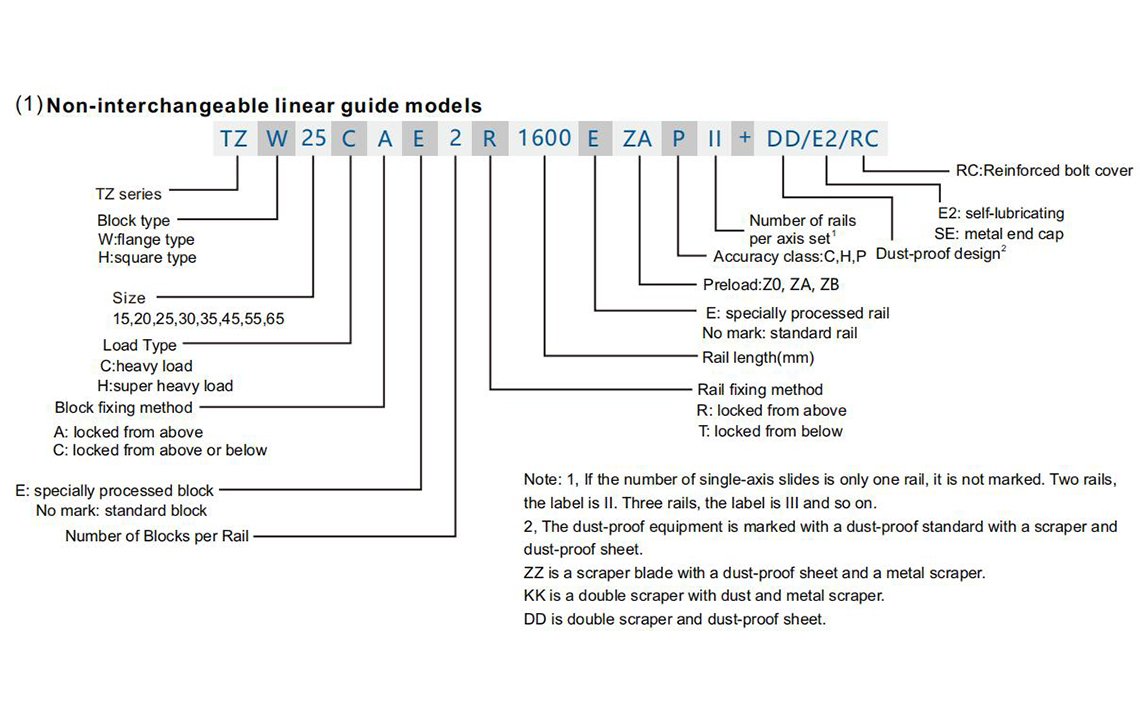

Non-interchangeable Model
TZ series linear guides is divided into two types: non-interchangeable type and interchangeable type. Both of them share the same specifications but the blocks and rails of interchangeable type can be used interchangeably.

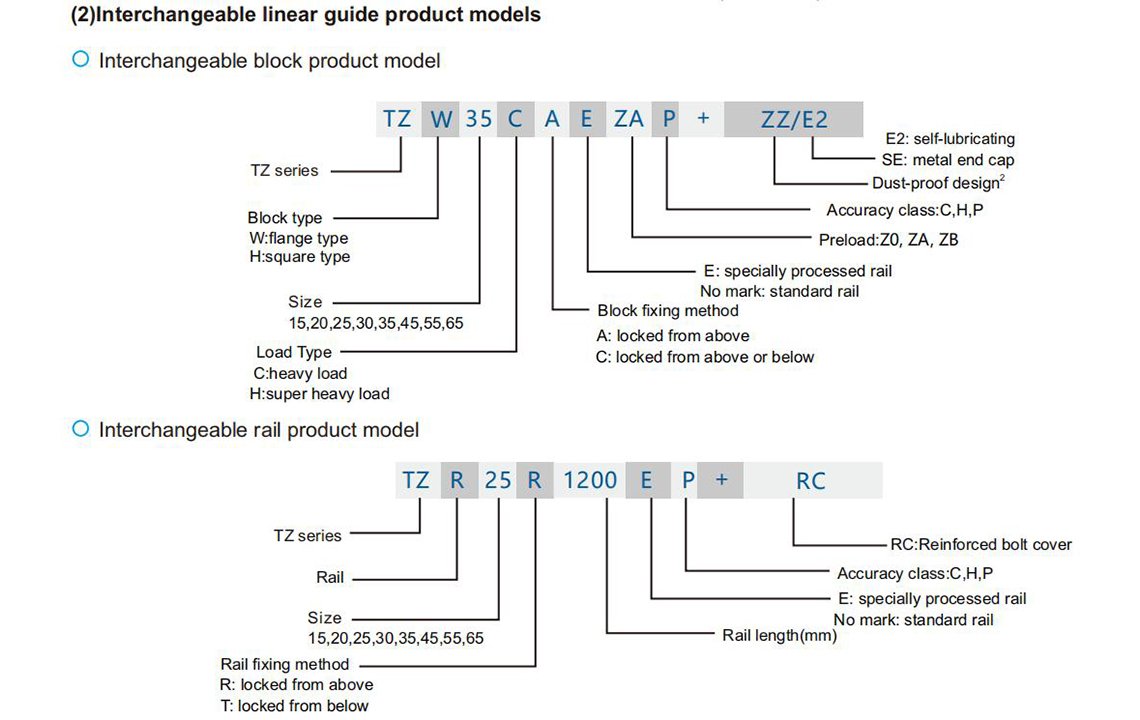

Interchangeable Model
Although the combination accuracy cannot be achieved as non-interchangeable ultra-high precision, IMTEK has a good dimensional control and strict quality requirements in manufacturing to meet your needs on precision level for your application. More details are as below.
TZW-CA Dimensions
The product specifications of the linear guides mainly indicate the dimensions of the linear guides, block type, accuracy grade, preload, etc., so that both parties can confirm the products at the time of ordering.
TZR-T Rail Specifications
IMTEK has stocks of standard lengths of linear guide rails for different kinds of demands from you. If you order non-standard length rails with required end face distance, please be free to contact IMTEK technical team for professional support. Generally, the dimension of end distance E should be smaller than 1/2P so that it can prevent the instability of the rear end of the rail assembly due to the excessive size of E, and reduce the accuracy performances.
