In modern automation, linear guides are more than simple rails. They are precision guidance systems that help control motion quality, load support, rigidity, and long-term machine reliability. You will find them in CNC machines, robotic axes, semiconductor equipment, packaging machinery, measuring systems, medical devices, and compact automation modules.
This article focuses on one core question: what are linear guides? It explains the basic definition, main components, working principle, common terms, and typical applications. Deeper topics such as selection, load calculation, preload, installation, lubrication, and troubleshooting are linked later as separate technical resources. For product comparison, you can also review IMTEK’s linear guides and linear guide rails product page.
Linear Guides: Key Takeaway
Linear guides are rail-and-carriage assemblies that support accurate straight-line motion with low friction. They use internally recirculating balls or rollers to convert sliding contact into smoother rolling motion, helping machines move payloads along one controlled axis.
- Core function: Linear guides constrain motion to a single straight path while supporting the moving load.
- Main parts: A typical system includes a stationary rail, movable carriage, rolling elements, end caps, seals, and lubrication points.
- Motion principle: Rolling contact greatly reduces friction compared with sliding contact, improving motion efficiency and repeatability.
- Reliability factor: Correct alignment and lubrication help reduce raceway fatigue, noise, and premature wear.
1. What Is a Linear Guide?
A linear guide is a mechanical assembly that constrains motion to one straight axis and it usually consists of a fixed rail and a moving block. The rail is mounted to the machine base, while the block carries the moving table, tooling, fixture, robot base, sensor head, or other payload.
The key purpose of a linear guide is simple: it keeps motion straight, supported, and repeatable. Instead of allowing a machine part to slide directly across a surface, the guide uses rolling elements inside the block to reduce friction and support controlled linear movement.
Video Overview: What Are Linear Guides?
This short visual overview shows the basic structure of a linear guide system and how a carriage moves along a rail through internally recirculating balls or rollers.
What the Video Shows
- How a rail and carriage form the basic linear guide assembly.
- How balls or rollers circulate inside the carriage during movement.
- Why rolling contact creates smoother motion than sliding contact.
- How the carriage supports the moving load while the rail defines the motion path.
- Why linear guides are common in automation, CNC machinery, robotics, semiconductor equipment, and precision equipment.
In practical machine design, we often use a linear guide together with a drive system. The linear guide supports and directs the load, while a ball screw, belt drive, rack-and-pinion system, linear motor, or actuator provides the driving force. This distinction is important. A linear guide does not normally create motion by itself; it guides the motion created by another mechanism.
| Term | Practical Meaning |
|---|---|
| Linear guide | The complete guidance system that supports straight-line motion |
| Linear rail | The fixed track mounted to the machine structure |
| Linear block / carriage | The moving part that travels along the rail and carries the load |
| Rolling elements | Balls or rollers that reduce friction between rail and block |
| Linear guideway | Another common industrial term for a linear guide system |

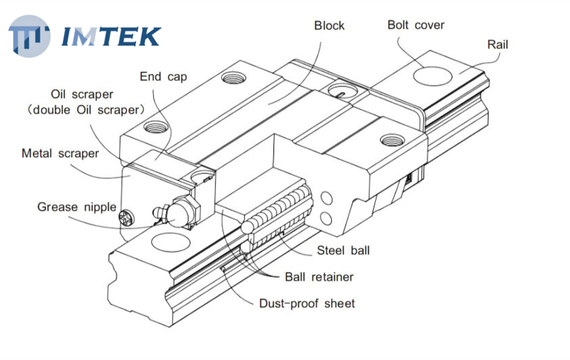

2.What Parts Make Up a Linear Guide System?
A linear guide may look simple from the outside, but its internal structure is carefully designed. Each part affects smoothness, load support, service life, contamination resistance, and motion stability, too.
Rail
The rail is the stationary reference component. It defines the straight travel path and provides hardened raceways for the rolling elements and in most machines, the rail is bolted to a machined base or frame.
The quality of the rail surface, hardness, straightness, raceway geometry, and mounting accuracy directly affect how smoothly the block can travel.

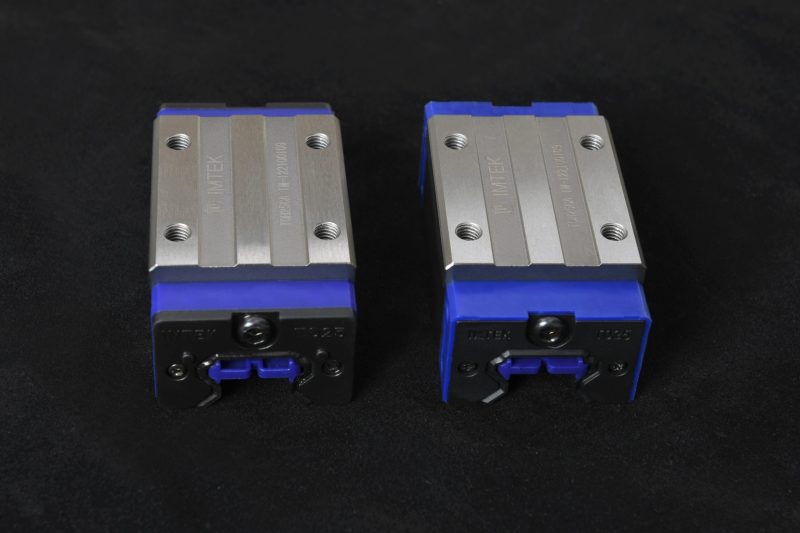

Block or Carriage
The block, also called a carriage, moves along the rail. It carries the moving load and transfers that load into the rail through balls or rollers. Blocks may have square or flange mounting shapes depending on the machine layout.
From experience, many engineers first look at rail size, but the block is just as important. Block length, block type, preload, and the number of blocks can strongly influence stability, moment resistance, and service life.
Rolling Elements
The rolling elements are usually steel balls or cylindrical rollers. They circulate inside the block as the block moves along the rail. This internal recirculation allows continuous travel while maintaining rolling contact between the block and rail raceways.
Ball-type guides use point contact and are widely used in general automation because they offer smooth motion and good speed capability. Roller-type guides use line contact, spreading load across a larger contact area. This gives roller guides higher stiffness and load capacity than ball guides of similar size.
For more detailed product-level comparison, review IMTEK’s ball-type linear guides and roller-type linear guides.
End Caps, Seals, Scrapers, and Lubrication Points
End caps help return balls or rollers into the circulation path. Seals and scrapers reduce the entry of dust, chips, coolant, or other contaminants. Grease nipples or oil ports provide access for lubrication.
These details are easy to overlook, but they matter in real machines. A guide that works well in a clean inspection system may fail quickly in a cutting or woodworking environment if you don’t consider contamination protection.
| Component | Main Function | Why It Matters |
|---|---|---|
| Rail | Defines the straight travel path | Affects motion reference, alignment, and rigidity |
| Block / carriage | Carries the moving payload | Transfers load into the rail and affects moment resistance |
| Balls or rollers | Create rolling contact | Reduce friction compared with sliding motion |
| End caps | Return rolling elements into circulation | Keep movement continuous and smooth |
| Seals and scrapers | Reduce contamination entry | Protect raceways from dust, chips, and particles |
| Lubrication point | Supplies grease or oil | Reduces wear, friction, heat, and noise |
3. How Do Linear Guides Work?
Linear guides work by converting high-friction sliding motion into low-friction rolling motion. As the block moves along the rail, balls or rollers roll between the rail raceways and the block raceways. After reaching the end of the loaded zone, they return through an internal recirculation path inside the block.
This rolling contact is why linear guides are much more efficient than many sliding systems. In many properly lubricated rolling guide systems, the friction coefficient is commonly around 0.002 to 0.005, depending on preload, sealing, lubrication, speed, and load conditions. This low friction helps machines move quickly, reduce drive force, and maintain smoother motion.
| Motion Method | Contact Style | Typical Motion Behavior |
|---|---|---|
| Sliding guide | Surface slides against surface | Higher friction, more dependent on lubrication film |
| Ball linear guide | Rolling point contact | Smooth motion, good speed capability, common in automation |
| Roller linear guide | Rolling line contact | Higher stiffness and load capacity for demanding axes |
In project reviews, I often see that the guide itself is only one part of the motion result. A high-quality guide may still feel tight or noisy if the mounting surface is uneven, if two rails are not parallel, or if the moving table twists under load. That is why experienced engineers evaluate the guide, base structure, drive, load position, and installation method together.
4. Basic Technical Numbers Behind Linear Guides
Even in a beginner-level explanation, a few engineering numbers help make linear guides easier to understand. These values should not replace a full selection calculation, but they show how linear guides are normally evaluated in real machine design.
| Technical Item | Typical Catalogue Meaning | Simple Interpretation |
|---|---|---|
| Static safety factor | Common lower limit: 1.0–3.0 for general operating conditions; 3.0–5.0 when shock or vibration is present | A guide used in impact or vibration conditions needs a larger safety margin than a smooth, low-impact axis. |
| Basic dynamic load rating | Used to estimate service life under rolling motion | The rated life changes with actual load, speed, lubrication, temperature, and operating environment. |
| Preload ratio | Often expressed as a percentage of dynamic load rating C | Preload removes internal clearance, but excessive preload can increase friction and reduce life. |
For example, a general linear motion axis under smooth operation may use a lower static safety factor range than a machine axis exposed to vibration, cutting force, or impact. In guide catalogues, the static safety factor is usually checked before confirming whether the selected guide can safely handle static load and moment load.
For life-related evaluation, the basic dynamic load rating is used together with the working load. A roller-type guide catalogue test, for example, recorded a TZH35CA guide running with ZA preload, 60 m/min speed, 1G acceleration, 0.55 m stroke, 15 kN additional load, and grease replenishment every 100 km. Its calculated life was 1,000 km, and the test ran 1,135 km without scale-like flaking on the raceway or roller surface. This type of data should be read as application-specific test evidence, not as a universal life guarantee for every installation.
5. What Are Linear Guides Used For?
Linear guides are used anywhere a machine needs controlled straight-line motion. Their role is especially important when the motion axis must carry load, resist side force, maintain repeatability, or run for many cycles.
They are foundational components in modern automation because they help position payloads accurately and repeatedly.
- In CNC machines, they support table and spindle movement.
- In Robots, they guide auxiliary axes or 7th-axis tracks.
- In Semiconductor equipment, they help move small components or inspection heads with stable, clean, and precise motion.
| Application | Why Linear Guides Are Used |
|---|---|
| Industrial automation equipment | Supports repeated transfer, positioning, and pick-and-place motion |
| CNC machines | Provides rigid guidance for cutting, drilling, grinding, and positioning |
| Robotics and 7th-axis systems | Guides robot bases or auxiliary motion axes over longer travel |
| Semiconductor equipment | Supports precise movement in compact and clean production systems |
| Measuring instruments | Helps maintain smooth, stable, and repeatable movement |
| Medical and compact devices | Enables small, smooth, and reliable linear motion |
| Packaging machinery | Handles high-cycle motion with low resistance |
For smaller devices, IMTEK’s miniature linear guides are often used where compact size, smooth motion, and clean mechanical layout are required.
IMTEK Linear guides, applied for PV Cell Laser Cutting Machine
6. What Is the Difference Between Linear Guides and Sliding Guides?
The main difference lies in the contact method. In a sliding guide, motion depends on direct sliding contact between two surfaces. By contrast, a linear guide uses balls or rollers to convert sliding motion into rolling contact. As a result, it usually produces much lower friction, making it more suitable for fast, repeated, and energy-efficient linear movement.
This does not mean sliding guides are useless. Some heavy, slow, or damping-sensitive machine designs may still use sliding surfaces. But for many automation, CNC, robotics, measuring, and semiconductor systems, linear guides are preferred because they offer smoother movement, lower drive resistance, and easier motion control.
| Item | Linear Guides | Sliding Guides |
|---|---|---|
| Contact type | Rolling contact through balls or rollers | Surface-to-surface sliding contact |
| Friction | Low, commonly around 0.002 to 0.005 in many rolling guide systems | Higher and strongly dependent on lubrication condition |
| Motion speed | Suitable for rapid repeated motion | Usually more limited by friction and lubrication |
| Repeatability | Good when installed and lubricated correctly | Can be affected by stick-slip and surface wear |
| Typical use | Automation, CNC, robotics, precision motion | Heavy sliding structures or special machine designs |
For a deeper explanation of this principle, see the article on rolling friction vs sliding friction.
7. Are Linear Guides the Same as Linear Rails?
In everyday search and purchasing conversations, people often use “linear guide,” “linear rail,” “linear guide rail,” and “linear guideway” as if they mean the same thing. In many cases, they are talking about the same product family. Strictly speaking, however, the terms are slightly different.
A linear rail usually refers to the fixed rail only. But a linear guide normally refers to the complete system, including rail and block. In addition, a linear guide rail may refer to the rail itself or the assembled rail-and-block system, depending on context.
| Search Term | Common Practical Meaning |
|---|---|
| Linear guide | Complete guidance system with rail and block |
| Linear rail | Often the fixed rail only |
| Linear guide rail | Often used to describe a rail-and-block guidance system |
| Linear guideway | Industrial term for a linear guide system |
| Linear slide | May refer to a compact slide assembly or guided motion unit |
When ordering or replacing components, always confirm whether you need only the rail, only the block, or a matched rail-and-block assembly.
8. What Types of Linear Guides Are Common?
Linear guides can be grouped by rolling element type, block shape, assembly height, size range, and protection design. For this article, the most useful beginner-level classification is by guide type and application need.
| Type | Basic Description | Common Use |
|---|---|---|
| Ball-type linear guide | Uses recirculating balls for smooth rolling motion | General automation, handling systems, machine tools, packaging equipment |
| Roller-type linear guide | Uses cylindrical rollers for higher stiffness and load capacity | Heavy-duty machines, CNC equipment, large gantry axes |
| Low-profile linear guide | Designed with lower assembly height | Compact automation, semiconductor equipment, space-limited machines |
| Miniature linear guide | Small guide system for compact precision motion | Medical devices, measuring instruments, PCB/IC assembly, small automation |
| Protected linear guide | Uses seals, scrapers, cover strip, or surface treatment | Dusty, humid, cutting, or contamination-prone environments |
In corrosive or moisture-rich industrial environments, martensitic stainless steels such as SUS440C can improve corrosion resistance, especially for miniature guide systems. For these applications, you can review IMTEK’s stainless steel miniature linear guides.
Surface treatment can also help protect a guide from oxidation and wear. Thin-film chromium plating, for example, can improve corrosion resistance while maintaining critical raceway dimensions when properly controlled. For more detail, see the article on linear rail surface protection.
9. Why Preload Matters, Even in a Basic Definition
Preload is a controlled internal force applied between the rolling elements and raceways. And manufacturers usually create it by incorporating slightly oversized balls or rollers to eliminate internal clearance inside the block.
For a beginner-level explanation, preload has one main purpose: it makes the guide feel tighter and more rigid. By removing mechanical clearance, preload helps improve stiffness and supports better positional stability. In suitable machine structures, this can help the motion system maintain sub-millimeter repeatability when combined with a proper drive, frame, control system, and installation method.
However, preload is not simply “more is better.” Too much preload can increase friction, heat, noise, and sensitivity to rail misalignment. This is why preload belongs to the deeper selection stage, not the basic definition stage.
To learn more after this article, read IMTEK’s linear guide preload guide.
10. Why Installation Alignment Matters
A linear guide depends on accurate mounting. If you misalign the rail, the block may be forced to carry unwanted moment loads. Over time, this can increase running resistance, accelerate raceway fatigue, and cause premature surface spalling.
This is one of the most common field issues I see in guide-related troubleshooting. A customer may assume the guide size is too small, but the real cause is often rail parallelism, uneven mounting surfaces, or bolt tightening sequence. Once you correct alignment, noise and friction can drop noticeably.
This does not mean every beginner needs to master installation tolerances immediately. But it means that a linear guide should always be understood as part of a mounted system. The rail, base, block, bolts, and moving structure all work together.
For installation details, refer to the linear guide installation guide.
11. Why Linear Guides Matter in Automation and Machinery
Linear guides are small compared with the full machine, but their influence is large. They affect how smoothly the axis moves, how much driving force is required, how stable the payload remains under load, and how long the machine can maintain acceptable motion quality.
In automation systems, linear guides help improve cycle stability by keeping repeated motion smooth and consistent. In CNC machines, they further support rigidity and controlled positioning under cutting or machining loads. Meanwhile, in semiconductor and inspection equipment, they help reduce unwanted motion variation, which is important for precision handling and measurement. For cleanroom environments, linear guides with polymer lubrication reservoirs inside the carriage can also extend maintenance intervals and reduce particulate generation compared with frequent manual lubrication.
From an engineering perspective, the best linear guide is not always the largest or most expensive one. It is the one that fits the load, axis structure, environment, and maintenance plan. A properly installed moderate-size guide often performs better than an oversized guide mounted on a weak or inaccurate base.
12. What Should Beginners Learn Next?
After understanding what linear guides are, the next step is to study the topic that matches the actual engineering task. A definition article should not try to solve every design question. It should help readers choose the right next topic.
| Next Engineering Question | Topic to Study | Recommended Reading |
|---|---|---|
| How do I choose the right guide type? | Series selection, load direction, rigidity, environment | linear guide selection guide |
| How do I choose rail size? | Rail size, block size, mounting space, application limits | linear rail size selection |
| How do I estimate load and life? | Dynamic load rating, static load rating, moment load, safety factor | linear guide calculation |
| What does preload do? | Clearance, stiffness, friction, noise, installation sensitivity | linear guide preload |
| Why does a guide become noisy? | Alignment, lubrication, preload, contamination, raceway damage | linear guide noise troubleshooting |
| How should rails be installed? | Reference rail, driven rail, bolt sequence, parallelism control | linear guide installation |
FAQ About Linear Guides
What are linear guides in simple terms?
Linear guides are rail-and-carriage systems that help machine parts move in a straight line with low friction and stable support. They use recirculating balls or rollers inside the carriage to guide controlled linear motion.
Is a linear guide the same as a linear rail?
Not exactly. A linear rail usually refers to the fixed rail, while a linear guide usually means the complete system, including the rail and moving carriage. In common purchasing language, the terms are interchangeable.
Do linear guides move by themselves?
No. Linear guides normally do not create motion by themselves. They guide and support the movement created by a drive system such as a ball screw, belt drive, rack-and-pinion system, linear motor, or actuator.
Why do linear guides use balls or rollers?
Balls or rollers help reduce friction by creating rolling contact between the rail and carriage instead of direct sliding contact. As a result, the system can move more smoothly, require lower drive force, and achieve better repeatability than many sliding-contact systems.
When should I use roller linear guides instead of ball linear guides?
We prefer roller linear guides when the machine needs higher stiffness, higher load capacity, or stronger moment resistance while ball linear guides are commonly for general automation, smooth motion, and higher-speed movement as well.
What can cause a linear guide to fail early?
Installation conditions or the surrounding machine structure usually cause early failure, rather than the linear guide alone. The most common root causes include:
- Rail Misalignment: Induces excessive moment loads that the system was not designed to handle.
- Poor Mounting Surface Accuracy: Twists the carriage under load, concentrating stress on specific raceway points.
- Insufficient Lubrication: Increases friction, heat, and metal-to-metal wear.
- Contamination: Dust, chips, or coolant entering the block if seals and scrapers are compromised.
- Excessive Preload: Increases running resistance and accelerates raceway fatigue without adding useful rigidity.
Conclusion
Linear guides are precision guidance systems designed to keep machine motion straight, stable, and efficient. Instead of relying on direct sliding contact, they use internally recirculating balls or rollers to create rolling motion. I dare to say that this design absolutely helps reduce friction, improve motion stability, and support accurate linear movement in repeated or high-speed applications.
The most important idea is that a linear guide is not an isolated part. It works together with the machine base, moving structure, drive system, lubrication method, and installation accuracy. Understanding this relationship is the first step before moving into guide selection, sizing, preload, installation, and troubleshooting.
If you are reviewing a new machine design or replacing existing rail and block components, you can start with IMTEK’s linear guides and linear guide rails page or contact us for linear guide support.
