Linear Guide vs Profile Rail Guide: Are They the Same?

You search for “linear guide” when you design a machine. Then you see “profile rail guide” in catalogs and drawings. The terms look similar. You may wonder if they mean the same component.

A profile rail guide is a specific type of linear guide used for precision linear motion. The term linear guide describes a broader category of systems that control straight-line movement. Profile rail guides use recirculating balls or rollers inside precision raceways and are widely used in CNC machines, robotics, and industrial automation.

You may see these two terms used in similar contexts. Engineers often use them as if they mean the same product. However, when you design machines or select components, understanding the difference helps you avoid mistakes in specification, sourcing, and performance expectations.

IMTEK Profile Rail Guides TO/TT series

Are You Using “Linear Guide” When You Actually Mean a Profile Rail Guide?

You may search for “linear guide” when you design a machine. But the product you actually need may be a profile rail.

Yes, in many engineering discussions the term “linear guide” often refers specifically to profile rails. However, the technical meaning of linear guide is broader and includes several different motion guide types.

What does the term “linear guide” really mean?

You use linear guides whenever a machine needs controlled straight motion. A linear guide keeps movement smooth and accurate along one axis. Engineers use many types of systems to achieve this. You can think of linear guides as a large category. Inside that category you will find different guide structures.

This classification shows why the terminology can become confusing. When engineers say “linear guide,” they often refer to the most widely used system inside this category.

Why engineers shorten the term

You work in fast project environments. Engineers and procurement teams often shorten technical language to save time.

Because profile rails dominate industrial automation, people frequently use the shorter term “linear guide” when they actually mean this specific design.

You will hear sentences like these in real engineering meetings:

• “Install linear guides on the X-axis.”
• “Choose a 20-size linear guide for the gantry.”
• “We need higher accuracy linear guides.”

In most cases, the engineer is referring to profile rail linear guides.

What happens in real projects

You may open a machine drawing and see a simple label: Linear Guide. However, when you check the part number or supplier catalog, you notice the system is clearly a profile rail guide.

This situation happens frequently in:

• CNC machine design
• robotics equipment
• industrial automation lines

Because profile rail guides offer the best combination of rigidity, precision, and durability, they became the default choice for many machine builders.

What Is a Profile Rail Guide and How Is It Different from Your Linear Guide?

You may see the term “profile rail guide” in catalogs from companies like THK, HIWIN, or Bosch Rexroth. The design looks different from simple shaft guides.

A profile rail guide is a precision linear motion system consisting of a profile rail and a carriage block. Rolling elements circulate inside internal raceways, allowing smooth motion with high rigidity and high load capacity.

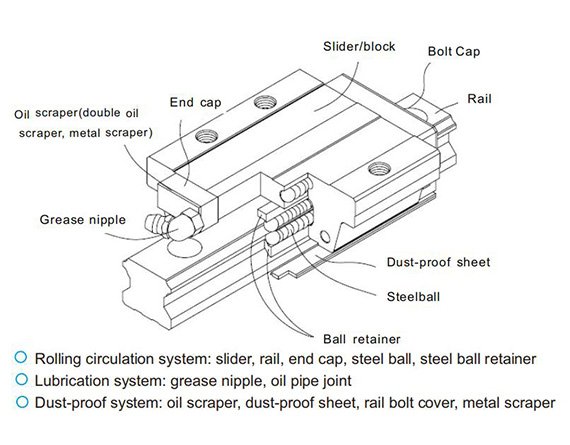

Main components of a profile rail guide

You can understand the system by looking at its main components.

The recirculating ball concept allows the rolling elements to move continuously inside the carriage block. This design keeps friction low while maintaining constant support.

Why the rail is called “profile”

The rail has a defined geometric shape. Engineers call this a profile. The profile creates raceways where balls or rollers run.

This geometry allows the guide system to support loads from multiple directions.

This multi-direction load capability makes profiled rail guides very stable.

Typical applications

You will see profile rail guides in many precision machines.

These machines require high accuracy and repeatable motion.

Why engineers choose this profile rail design

You choose this system when your machine must meet strict performance requirements.

Key benefits include:

• high rigidity
• high load capacity
• precise positioning
• long operating life

These features explain why profiled rail guides became the standard solution in many automation applications.

Why Do You Confuse Linear Guides with Profile Rail Guides?

You may feel confused because catalogs and engineers often use both terms in similar situations.

You see confusion because profile rail guides dominate modern industrial automation. Since they are the most common linear motion solution, many engineers simply refer to them as linear guides.

How industry language evolves

Engineering language evolves with technology. When a specific solution becomes the dominant standard, its name can replace the general category name.

You see the same phenomenon in many technical fields.

Over time, the specific product becomes the assumed default.

Search engine behavior

You may also notice that search engines show profiled rail guides when you search for linear guides. That happens because most users expect this type of product.

Engineering drawings and documents

Machine drawings sometimes simplify terminology. Designers may label a component as “linear guide” instead of writing the full technical term. However, the detailed specification usually includes the exact rail series and size.

Example specification:

Clear documentation helps avoid confusion during manufacturing and procurement.

Why this matters for purchasing

If you are a procurement manager, the terminology can cause confusion.

You must check three details:

Clear specifications avoid mistakes during sourcing.

How Do You Choose Between a Linear Guide and a Profile Rail Guide?

You may wonder if you should choose a different type of linear guide instead of a profiled rail guide.

You should select the guide type based on load capacity, precision requirement, installation space, and cost. Profiled rail guides are usually chosen for high-precision automation systems.

Step 1: Understand your load conditions

You first evaluate the load conditions in your machine.

The load calculation method is explained here: IMTEK Calculation Guidance

Step 2: Check required accuracy

Different applications require different positioning accuracy.

Profile rail guides usually offer higher accuracy than shaft guides and know more about profile rail guides accuracy from IMTEK Linear Guides Accuracy Guidance.

Step 3: Evaluate installation conditions

You also check the mounting surface quality.

Profile rails require:

• flat mounting surfaces
• parallel alignment
• precise fastening torque

If the structure cannot meet these conditions, a simpler guide system may be easier.

Step 4: Compare cost and complexity

Profile rail guides cost more than simple shaft systems. But they provide much better performance.

You balance cost with performance.

How suppliers can help

If you work with a manufacturer such as IMTEK, you can request engineering assistance. A good supplier can check your drawings and recommend a suitable rail size and configuration.

This support reduces design risk and shortens development time.

When You Search for Linear Guides, Are You Actually Looking for Profile Rail Guides?

You may type “linear guide” into a search engine. Most results will show profile rail guides.

In modern industrial automation, most searches for “linear guides” lead to profile rail guide systems because they dominate applications that require precision and high load capacity.

Why profile rail guides dominate the market

Modern machines demand higher accuracy than older equipment.

These requirements push engineers toward profiled rail systems.

Growth of automation industries

Industries like robotics and electronics manufacturing use profile rail guides heavily.

Examples include:

• automated assembly lines
• semiconductor machines
• high-speed packaging systems

What engineers usually expect

When you search for “linear guide,” you likely expect a system that includes:

• rail
• slider block
• ball circulation

This expectation naturally points to profile rail guides.

Why suppliers focus on this category

Most industrial guide manufacturers concentrate on profile rails because demand is high.

Suppliers maintain inventory in common sizes such as:

Inventory availability allows faster project delivery.

Conclusion

Linear guide is a broad term. Profile rail guide is a specific type widely used in automation. Understanding this difference helps you choose the correct motion system for your machine design.
