Features of IMTEK Linear Ball Guides
With its advantages of stable performance, strong adaptability, and convenient maintenance, IMTEK ball type linear guide rails and blocks have been widely penetrated into many key fields, such as high-end manufacturing, medical, semiconductors, and new energy. Load, accuracy, environment, and installation conditions should be considered in order to optimize linear motion system performance.
- High Motion Accuracy
- Low Friction Coefficient Performance
- Load Capacity
- Long term Service Life
- Environmental Adaptability
- Quick Installation & Easy Maintenance
TO Series Heavy-Duty Linear Ball Guides
The TO Series is designed for linear motion systems that require higher load capacity, stronger rigidity, and stable running performance. It is suitable for heavier machine structures where guide stability and moment support are important.
- Heavy-duty guide series for higher load and rigidity
- Suitable for machine tools, gantry axes, automation equipment, and packaging systems
- Choose TO Series when load capacity and structure stiffness are the main concerns
TT Series Low-Profile Linear Ball Guides
The TT Series is designed for compact machines and applications with limited installation height. It helps reduce the overall guide structure height while maintaining smooth, low-friction linear motion.
- Low-profile guide series for compact installation spaces
- Suitable for inspection systems, positioning units, compact automation, and light machinery
- Choose TT Series when installation height and space saving are key factors
example, applications like lithium-ion battery and solar cell lines, please contact me for customized solutions.
TO Series Linear Ball Guides

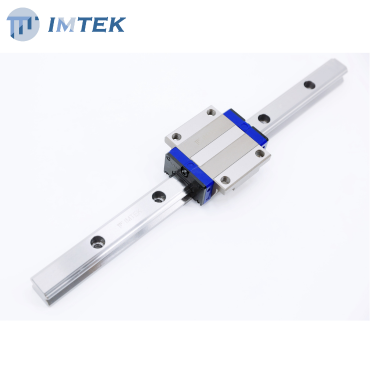

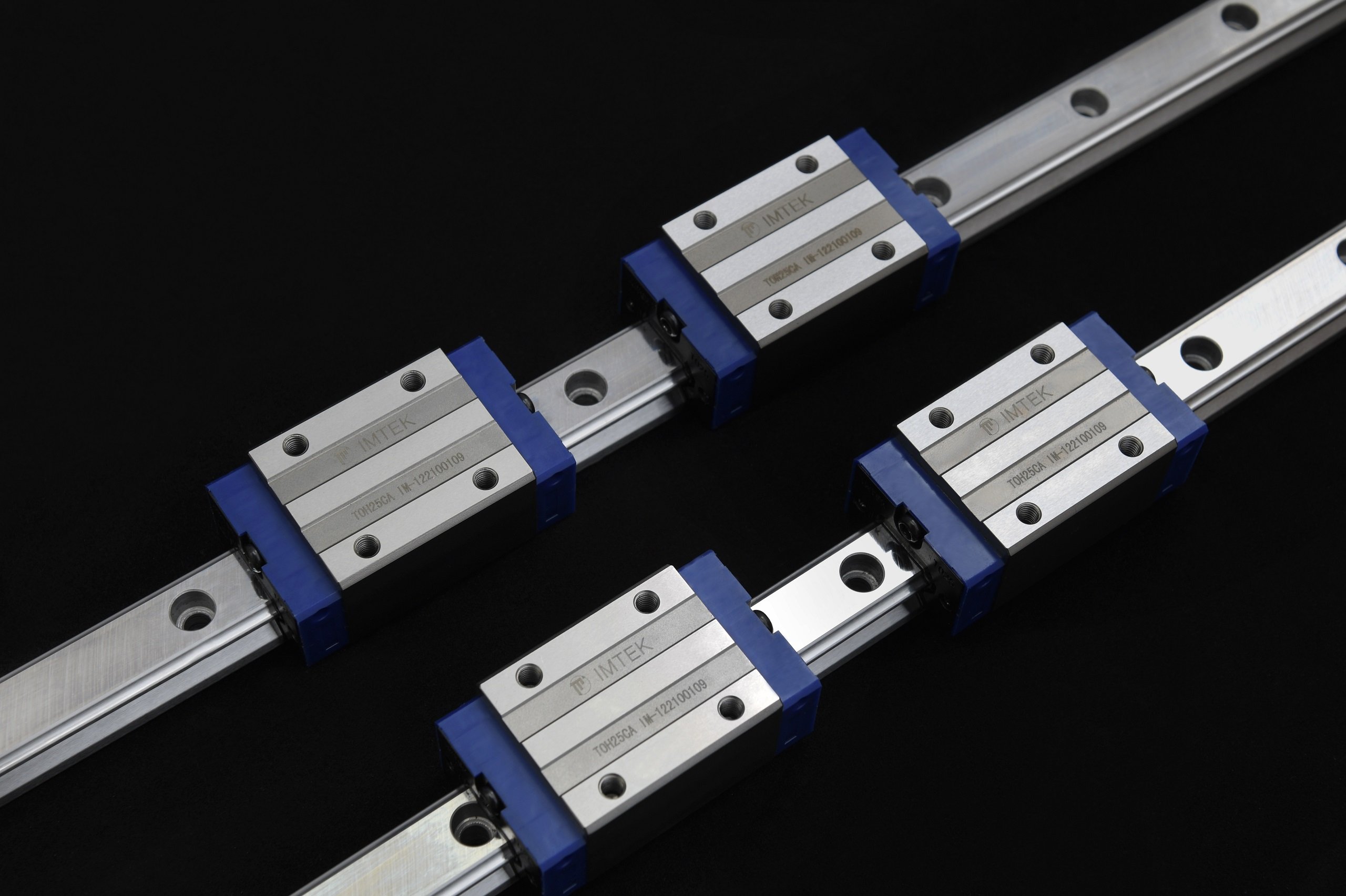

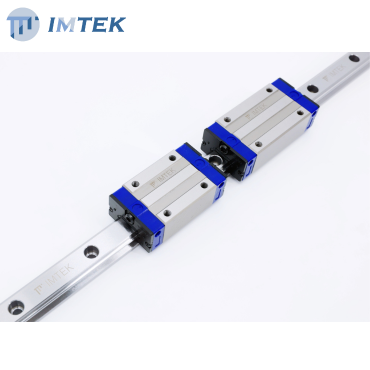

Explore TOH square blocks and TOW flange blocks for heavy-duty linear ball guide applications. Standard and extra-length block options are available for different mounting layouts and moment load requirements.
TT Series Linear Ball Guides
Explore TTH square blocks and TTW flange blocks for low-profile linear guide applications. Normal-size and short-length options are available for compact machines with limited installation height.
Advantages of IMTEK Linear Ball Guides
Superior Stainless Steel Option
Available in corrosion-resistant stainless steel, perfect for clean room, medical, and food-grade environments.
Flexible Customization & Fast Lead Time
Make-to-order manufacturing supports tailored lengths, preload levels, and special coatings, with competitive lead times.
Long Service Life & Easy Maintenance
Enhanced materials and surface treatments minimize wear, reduce lubrication needs, and extend product lifespan.
High Precision & Smooth Motion
Engineered for ultra-smooth linear motion with micron-level accuracy, ideal for high-precision automation systems.
Compact Miniature Series Available
Full range of ball type linear guides (including 15mm–55mm sizes), especially miniature linear ball types for limited-space and micro-mechanical applications.
Robust Load Capacity
Optimized rail and block design ensures excellent load-bearing performance in both radial and reverse directions.
Resource
If you want to know more about the detailed information about different types of linear guides, the catalog of IMTEK linear guides for you is absolutely a good choice.
A smart recommendation with 2D and 3D drawings and more specifications help you make the linear motion solution easy to show.
Application
Linear ball guides are widely applied in modern automated assembly line, offering the machine smooth and precise linear motions. As a part of the linear motion systems, linear guide rails and sliders ensure the accuracy and repeatable precision positioning, even under continuous working and various load requirement.
Its low friction design and good load capacity make the linear ball guides ideal for applying in robotic arms, pick and place units, transfer system, and inspection stations.
Their compact structure allows for easy integration into space-constrained working condition while the durability of linear ball guides helps them save maintenance and extend service life.
Linear ball guide rails play the triple role of “moving track + precision bearing + shock absorption support” in CNC machine tools, and are the key basic parts to achieve high precision, efficiency, reliability in modern manufacturing.
- High Precision Guidance: Low-friction rolling motion, linear guides guide tables, spindles, or tools along the X/Y/Z axis.
- High Rigidity Support: Adopts a four-row ball structure to withstand cutting forces, impact forces, and gravity loads.
- High-speed response and efficiency improvement: The rolling friction coefficient is only 1/50 of the traditional sliding guide rail.
- Multi-axis linkage and modular integration: The standardized interface design supports three-axis or multi-axis linkage, compatible with servo motors and raster ruler closed-loop control

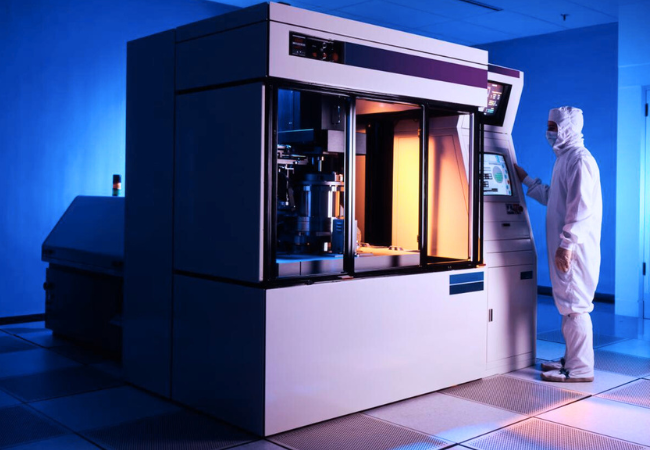

The linear guides system has evolved from “just a mechanical guidance that allows objects to slide in straight” to an “intelligent precision motion platform embedded in a clean production line”. It is no longer a mechanical part installed in isolation, but an intelligent execution unit seamlessly integrating with servos, sensors and MES, supporting nanoscale positioning, real-time error compensation and predictive maintenance, and becoming the underlying motion infrastructure for high-speed, high-yield, and flexible manufacturing of semiconductor production lines.
- Modular Unit Integration: From “Parts” to “Systems”
- Clean room compatible design: double guarantee of structure and lubrication
- Nanoscale closed-loop control: intelligent docking with the upper system
A: Before shipment, IMTEK checks key quality items such as movement parallelism, rail straightness, assembly height, preload, and running smoothness. These inspections help confirm that the linear guide rails and blocks meet the required accuracy and motion performance before delivery.
A: Standard IMTEK linear ball guides are generally suitable for normal industrial operating temperatures. For low-temperature, high-temperature, vacuum, or special lubrication environments, the guide material, seals, grease, and surface treatment should be confirmed before selection.
A: IMTEK linear guides are inspected before shipment and packed with anti-rust protection for storage and transportation. For stocked products, warranty handling depends on the product condition, storage environment, delivery date, and actual application. If a quality issue occurs, IMTEK will review the order record, product photos, installation condition, and failure details to support the customer.
A: Yes. IMTEK can provide linear guide options for special environments, including stainless steel guides, black chrome plated guides, ball chain guides, and high-temperature resistant versions. The suitable option depends on the working condition, such as humidity, corrosion risk, dust, temperature, noise requirement, or anti-glare surface needs.
Choose the TO Series when your application requires higher load capacity, stronger rigidity, and better moment support. Choose the TT Series when installation height is limited and the machine needs a more compact linear guide structure. If load, space, and accuracy requirements are not clear, IMTEK can help recommend a suitable series based on your application conditions.
Yes. IMTEK can support custom rail length, preload selection, block type, accuracy grade, surface treatment, and mounting requirements based on the machine design. For custom projects, customers can provide drawings, equivalent models, rail length, block quantity, load condition, and working environment for technical checking.
IMTEK linear ball guides can be checked against equivalent models from other brands based on rail size, block type, mounting hole dimensions, assembly height, preload, and accuracy grade. If you need replacement support, please provide the original model number, drawings, photos, or installation dimensions so IMTEK can confirm compatibility.
